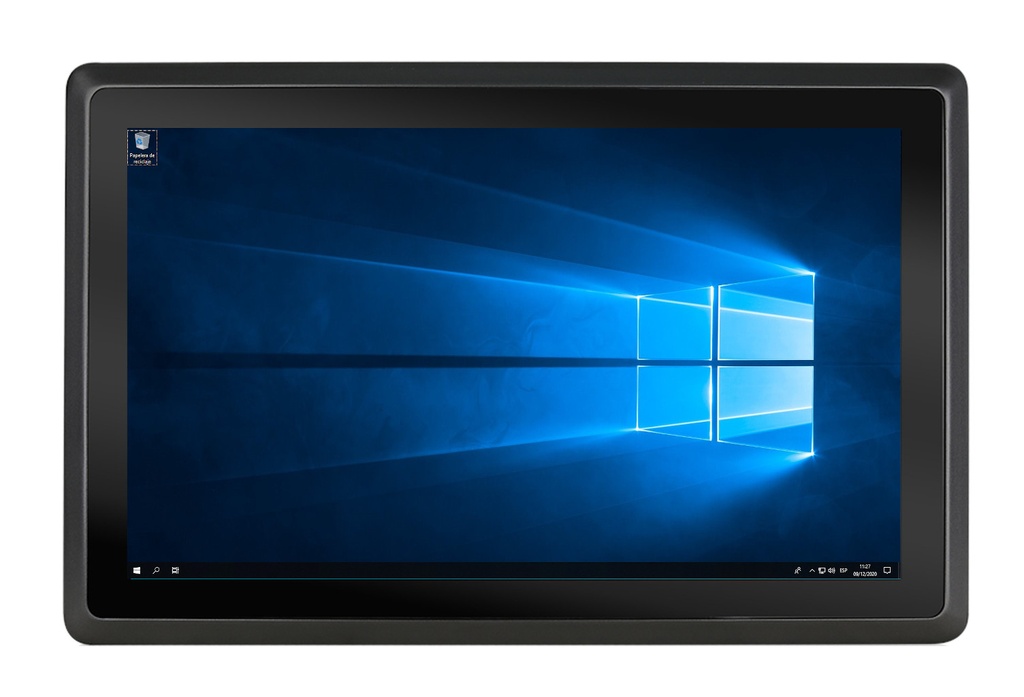

Panel PC QD

Versatile Panel PC with capacitive touch panel and waterproof front (IP65). Available in a broad range of screen sizes and CPUs.
Standard configuration is CPU Celeron J4125 with 8 GB RAM, 120 GB Flash. Intel Core i5 / i7 and custom configurations on request. With Windows 10/11 or Ubuntu.
740.00 € 740.00 € (Tax excluded)

  • Screen size
  • Touch technology
  • CPU
  • LAN
  • WiFi
  • USB
  • Serial ports
  • Video
  • RAM capacity
  • RAM type
  • Flash capacity
  • Flash type
Add to cart
Add to wishlist
Contact Us
Touch technology: Capacitive
LAN: 2*Gbit
WiFi: 802.11a/b/g/n
USB: 4*USB
Serial ports: 2*RS232
Video: 1*VGA + 1*HDMI
RAM capacity: 8 GB
RAM type: DDR4 SO-DIMM
Flash capacity: 120 GB
Flash type: SSD mSATA
Capacitive Touch
10-Point PCAP touch screen
IP65 Front Panel
Water & dust protection
Fanless Design
Sealed aluminum chassis, silent
Dual Gigabit LAN
2 × RJ45 Gigabit Ethernet
Wide DC Power
12V to 36V DC input support
Industrial Temp
-10ºC ~ 60ºC operating range

Technical specifications

Platform capabilities and technical specifications for the Panel PC QD series integration.

System & Architecture
Processor OptionsIntel Celeron J6412 / Intel Core i5 / Core i7 (8th to 12th Gen)
GraphicsIntel UHD Graphics / Intel Iris Xe Graphics
RAM Memory4 GB up to 64 GB DDR4 (Up to 128 GB on 12th Gen)
Operating SystemWindows 7 / 10 / 11, Linux (Ubuntu, Debian, CentOS, RedHat)
Display & Protection
Available Sizes7", 8", 10.1", 10.4", 11.6", 12", 15", 15.6", 17", 17.3", 19", 19.1", 21.5"
Touch TechnologyProjective Capacitive PCAP (10-point) / Resistive / Non-Touch
Front ProtectionIP65 NEMA 4 compliant water & dustproof front bezel
Storage Options
Primary SSD64 GB to 512 GB mSATA / SATA3 SSD or 128 GB to 1 TB NVMe M.2
Secondary StorageOptional secondary 2.5" HDD/SSD (up to 2 TB)
Interfaces & Connectivity
Display Outputs1 × HDMI + 1 × VGA / DVI (Independent dual display support)
Ethernet LAN2 × RJ45 Gigabit Ethernet ports
USB Ports2 × to 4 × USB 3.0 / USB 2.0
Serial Ports2 × to 6 × RS232 DB9 COM ports
Expansion / WirelessDual Band WiFi (2.4G/5G) + Bluetooth / Optional 4G LTE with SIM slot
Power & Environment
Power Input12V DC Standard (12V–36V DC Wide Voltage Optional)
Mechanical StructureSealed fanless aluminum alloy chassis (Black / Silver / White)
Mounting OptionsPanel Mount / VESA Mount
Operating Temp.-10ºC to 60ºC | Humidity: 10%–95% non-condensing

Documents & downloads

Access technical documentation and datasheets for integration.

PDF
Datasheet
Panel PC QD Datasheet · PDF
Download ↓
Custom Project Requirements?

Select your preferred screen size, CPU, RAM, and storage variants directly from the product options above or contact us for special OEM builds.

13 Screen Sizes Celeron / Core i5 / i7 Custom I/O
Need assistance choosing the right variant?

Our engineering team can help you select the exact hardware architecture, display size, and power options for your specific industrial deployment.
